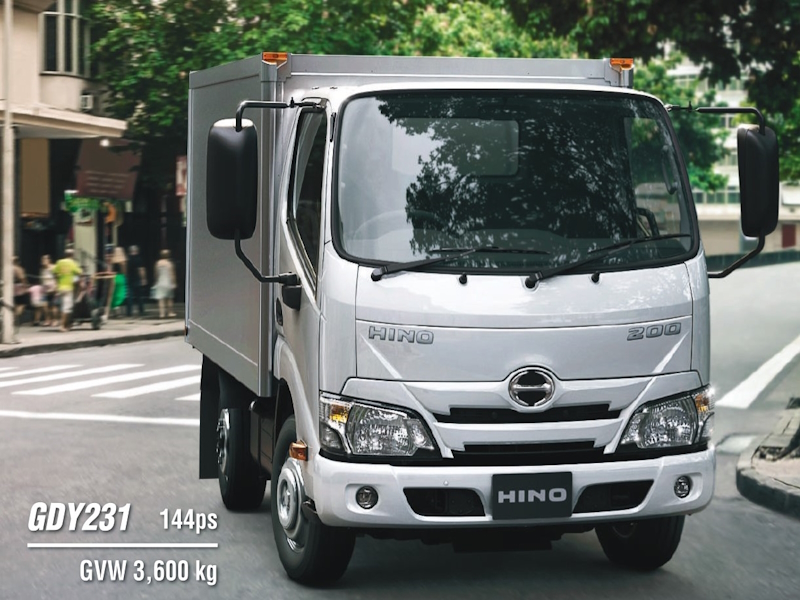

HINO 200 SERIES GDY231

HINO 200 SERIES GDY231

GDY231R-HBMLP3

Product Description

Overview
Specification

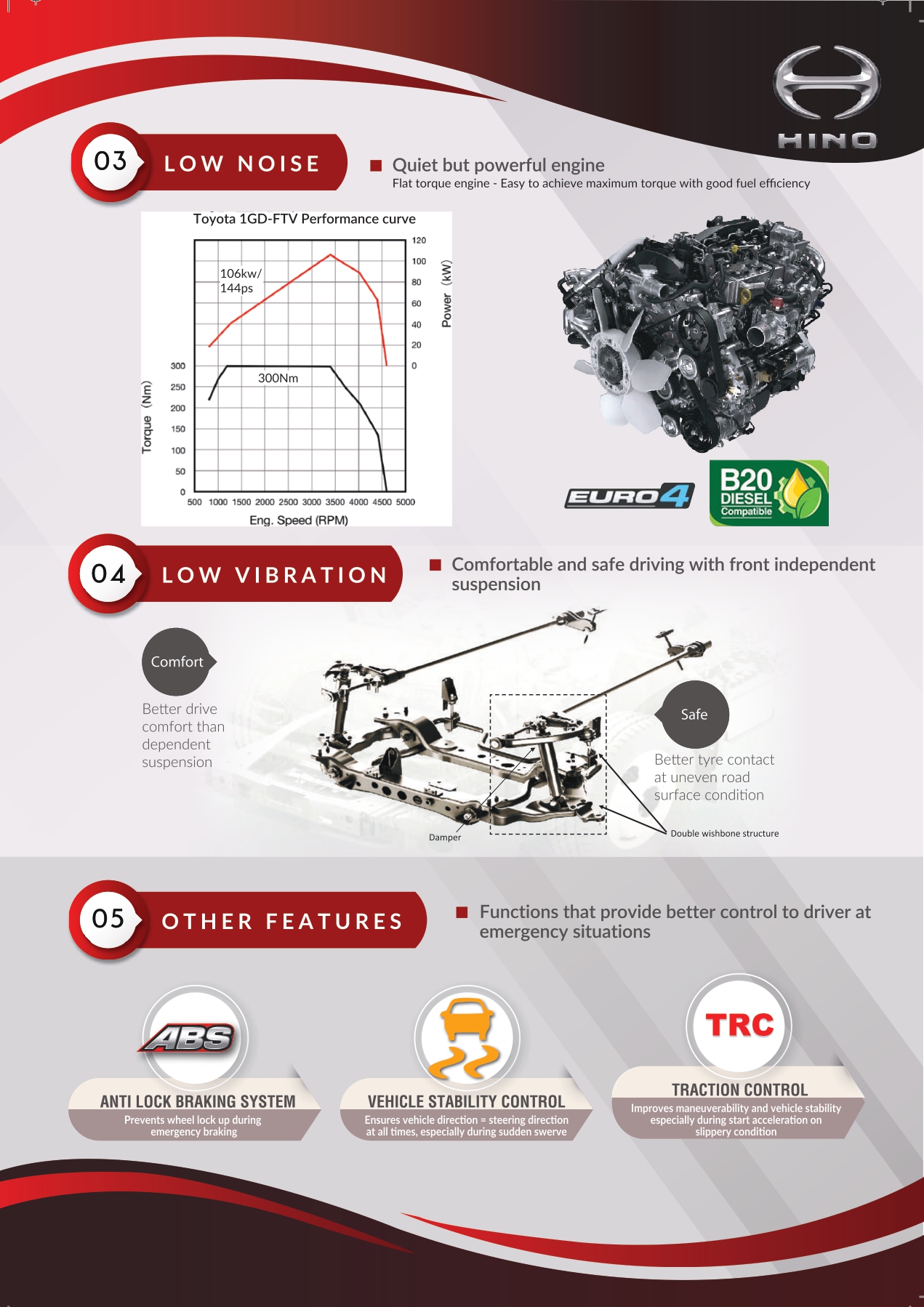

HINO 200 SERIES TOYOTA 1GD-FTV







Engine Model TOYOTA 1GD-FTV
Type Diesel, Turbocharged and intercooled, in-line 4-cylinder, double overhead camshaft, water-cooled
Displacement (cc) 2,754
Max Output (PS/rpm) 144 / 3,400
Max Torque (Nm/rpm) 300 / 1,200-3,200
Bore & Stroke (mm) 92 x 103.6
Fuel Injection System Electronic Control Commonrail
Air Intake System Under cab mounted air intake with air filler
Max. Engine Speed (rpm) 4,400
Clutch Type Dry single plat with damper springs, hydraulic control
Diameter (mm) 275
Axle Front Type Independent
Capacity (kg) 1,800
Rear Type Full-Floating, single reduction, single speed by hypoid gearings
Capacity (kg) 2,300
Brake Service Brake Type Hydraulic System with Ventilated Disc for Front Wheels and Dual Two (2) Leading Shoes for Rear Wheels
Service Brake Control Vacuum Servo Hydraulic, Dual Circuits with ABS and VSC
Parking Brake Type Mechanical, internal expanding acting on transmission output shaft
Suspension Front (Type) Double wishbone, independent torsion bar springs with double acting shock absorbers and stabiliser bar
Rear (Type) Semi-elliptic main and auxiliary leaf springs and rubber rebound bumpers with double acting shock absorbers
Frame Width 800
Dimention (HxWxT) 160 x 50 x 4.5
Cabin Equipment Tilting Mechanical Type
Steering Telescopic and tilt steering column,rack and pining power steering
Power Window Equipped
Central Locking Equipped
Seat Belt Equipped
Wheels & Tires Wheel Type 6 Stud disc wheel
Rim Size 15 x 5J
Tire Size 195 / 75R15
Electrical Type 12V , negative ground
Batteries 12V , 80 Ah
Alternator Capacity (V-A) 12V -100A
Fuel Tank Capacity Liter 80

Performance
G.V.W Rating kg 3600
Performance Max Speed (km/h) 100 (Speed Limiter)
Gradeability (Tan%) 46.1
Transmission Model R451 / 5F-1R
Type Manual
Gear Ratio 1st 4.313
2nd 2.330
3rd 1.436
4th 1.000
5th 0.838
Reverse 4.220
Rear Axle Ratio 4.100

Dimension & Mass
Chassis Mass (Without standard tool set, & spare tire) Front (kg) 1,175
Rear (kg) 520
Total (kg) 1,695
Dimension Wheelbase (mm) 2,545
Overall Length (mm) 4,565
Overall Height (mm) 1,990
Overall Width (mm) 1,695
Cab To Rear Axle (mm) 1,990
Front Overhang ROH (mm) 960
Rear Overhang (mm) 1,015
Fr Frame Height (mm) 635
Rr Frame Height (mm) 710
Front Tread (mm) 1,440
Rear Tread(mm) 1,400
Turning Radius (mm) 4,700
