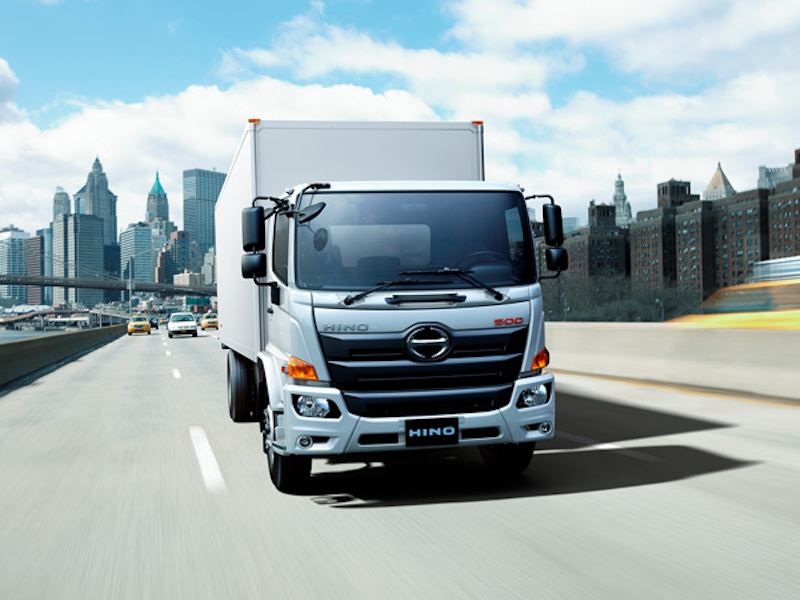

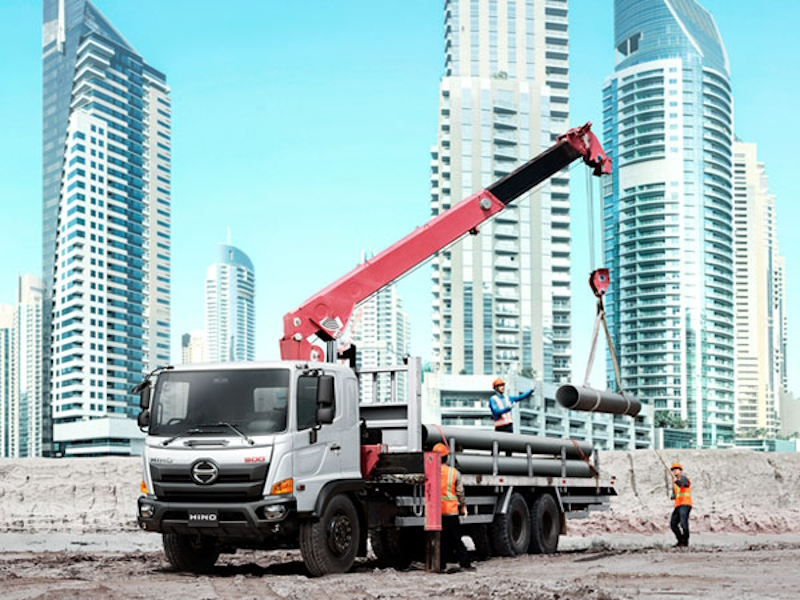

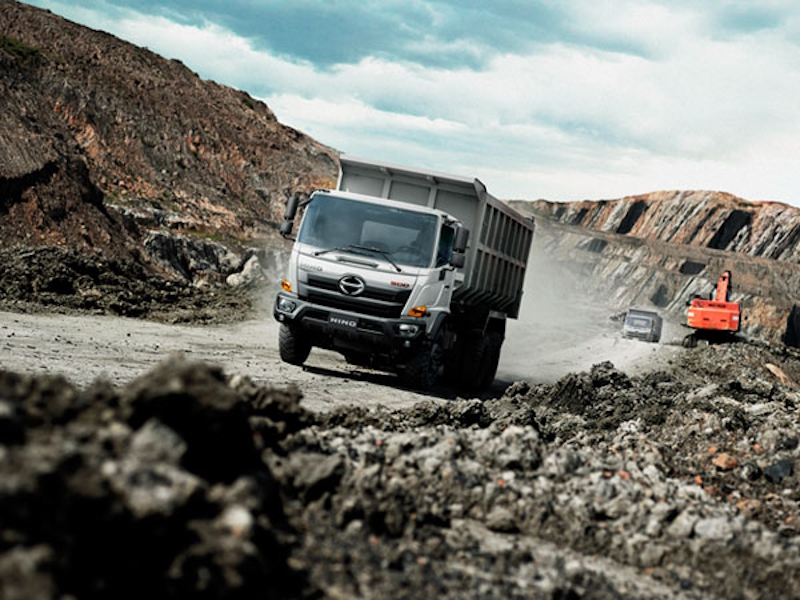

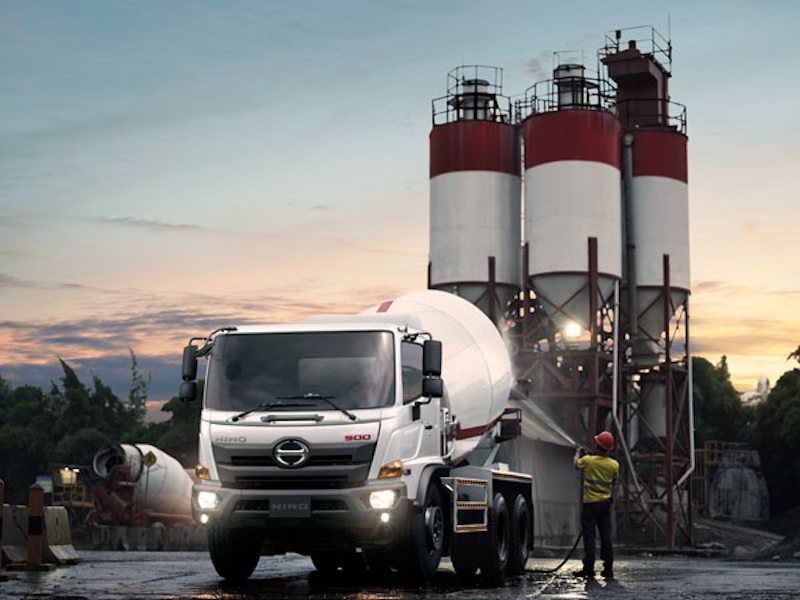

HINO 500 SERIES - FL8JW1A

HINO 500 SERIES - FL8JW1A

FL8JW1A-XGM
Bringing HINO’s chassis versatility, HINO 500 Series is the ideal medium duty truck for operators.

Product Description

Overview
Features
Specification


HINO 500 SERIES J08E-WK (EURO 2)



Drive Your Business Easier

Bringing HINO’s chassis versatility, HINO 500 Series is the ideal medium duty truck for operators. The outstanding range of trucks continues to offer medium duty trucks buyers total flexibility and satisfaction. The 500 series offers customers legendary fuel and operating efficiency. This is the right medium duty truck of your choice.



HINO 500 SERIES J08E-WK (EURO 2)



Drive Your Business Easier

Bringing HINO’s chassis versatility, HINO 500 Series is the ideal medium duty truck for operators. The outstanding range of trucks continues to offer medium duty trucks buyers total flexibility and satisfaction. The 500 series offers customers legendary fuel and operating efficiency. This is the right medium duty truck of your choice.



Interior


Airvents   Bed space   Cooler
Airvents   Bed Space   Cooler

Ashtray   Center clustor   Driver Seat
Ashtray   Center Clustor   Driver Seat



Exterior


Platform   Cab Step   Coupler
Platform    Cab Step   Coupler

Bolt   Aerodynamic
Bolt   Aerodynamic



Safety & Perfomance


Gear     Pulsator
Gear       Pulsator

Flame
Flame



Interior


Airvents
Airvents

Bed space
Bed Space

Cooler
Cooler

Ashtray
Ashtray

Center clustor
Center Clustor

Driver Seat
Driver Seat



Exterior


Platform
Platform

Cab Step
Cab Step

Coupler
Coupler

Bolt
Bolt

Aerodynamic
Aerodynamic





Safety & Perfomance


Gear
Gear



Pulsator
Pulsator

Flame
Flame





Engine Model HINO J08E-WK (EURO 2)
Type Diesel, 4cy., 6-Cylinder Vertical in-line, Overhead Camshaft, Water Cooled
Displacement (cc) 7,684
Max Output (Jis Gross) (kW(PS)/rpm) 210 (285) / 2,500
Max Torque (Jis Gross) (Nm(kgfm)/rpm) 892 (91) / 1,500
Bore & Stroke (mm) 112 x 130
Fuel Injection System Electronic Control, Commonrail Type
Air Intake System Turbo Charged Intercooled
Max Engine Speed (rpm) 2,750
Clutch Type Dry Single Plate With Damper Springs
Diameter (mm) 380
Transmission Model/No. Of Speed M009/9-Speed/Manual
Type Nine(9) Forward and One (1) Reverse Speed, Direct Drive
Ratio (1st - Top) 14.056/1.000
Axle Front Type Reversed Elliot, "I" Section Beam
Capacity (kg) 6,000
Rear Type Full-Floating, Single Reduction, Single Speed by Hypoid Gearings
Capacity (kg) 20,000
Brake Service Brake Type Drum Brake With Two Leading Shoes for Front and Rear Wheels with Auto Shoe Brake Adjuster
Service Brake Control Full Air, Dual Circuit, with Antilock Brake System (ABS)
Parking Brake Type Air Operated Spring Brake, Acting on Front and 1st Rear Axle
Auxiliary Brake Type Exhaust Brake
Suspension Front Type Semi-Elliptic Leaf Springs (Reinforced Type) with Single Action Shock Absorber
Rear Type Semi-Elliptic Leaf Springs
Frame Frame Width (mm) 840
Height x Width x Thickness (mm) 300 x 80 x 8.0
Cabin Tilting Mechanical Type
Steering Telescopic and Tilt Steering Column, Recirculating ball integral power steering
Hino Connect Equipped
Power Window Equipped
Central Locking Equipped
Seat Belt Equipped
Wheels & Tires Wheel Type Ten (10) - Stud Disc Wheel (ISO type)
Wheel Size 22.5 x 8.25
Tyre Type Tubeless Type
Tyre Size 295/80R22.5
Electrical Type 12 V x 2, Series Connection
Batteries 24V, 243kC (65Ah) at 20-hour rate
Alternator Capacity 24V, 60 Amp
Fuel Tank Capacity L 320

Performance
G.V.W Rating kg 26,000
Performance Max Speed (km/h) 90*(With Speed Limiter)
Gradeability (tan0) % 43.8
Transmission Ratio Model M009
1st 14.056
2nd 9.647
3rd 6.993
4th 5.021
5th 3.636
6th 2.653
7th 1.923
8th 1.380
9th 1.000
Reverse 13.636
Rear Axle Model SH17
Ratio 4.625

Dimension & Mass
Chassis Mass (Without standard tool set, with spare tyre) Front Axle (kg) 3,435
Rear Axle (kg) 3,815
Total (kg) 7,250
Dimension Wheelbase WB (mm) 6,430 + 1,350
Overall Length OL (mm) 11,945
Overall Width OW (mm) 2,490
Overall Height OH (mm) 2,760
Cab To Axle Center CA (mm) 6,275
Rear Overhang ROH (mm) 2,875
Front Tread FT (mm) 2,055
Rear Tread RT (mm) 1,855
Turning Radius (on tire) (mm) 11,900
Seating Capacity 3
