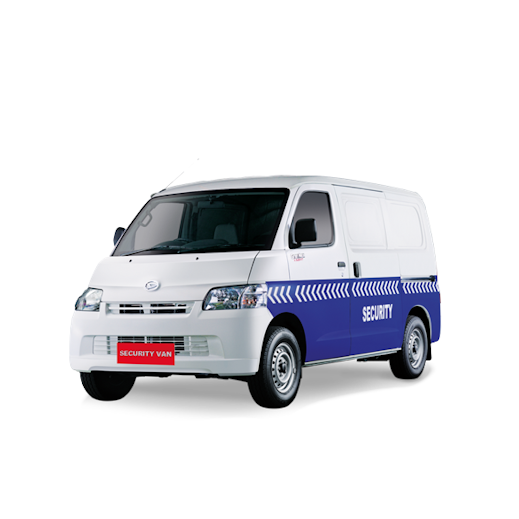

Hino Truck/ Lorry Johor Bahru (JB) Daihatsu DAIHATSU GRAN MAX PANEL VAN (AT)

AT01

Download Brochure

Engine	Emission Level	2NR Euro 4
	Engine Type	Petrol, 4-Cylinder, DOHC, 16-Valve, DVVT
	Total Displacement	1496cc
	Max. Output	72 kW, 6000 rpm
	Max. Torque	134 Nm / 4400 rpm
	Fuel System	Electronic Fuel Injection
Dimensions	Overall Length	4045 mm
	Overall Width	1665 mm
	Overall Height	1930 mm
	Wheelbase	2650 mm
	Min. Road Clearance	180 mm
	Gross Vehicle Weight	2000 kg
	Min. Turning Radius	4.9 m
Transmission	Drivetrain	Rear Wheel Drive (RWD)
	Gear Box	Forward 4-Speed Full Automatic
Safety and Security	Reverse Camera	With
	Anti-Lock Braking System (ABS)	With
	Dual SRS Airbags System	Driver & Passenger
	Central Locking System	With
	Immobilizer	With
	Reverse System	Sensor
	Steering Column	Collapsible
	3-Point Protensier Seatbelts	With Seat Belt Warning
Others	Audio System	7-inch Touchscreen Multimedia System with Bluetooth Mirrorlink Capability
	Power Window	Drive & Passenger
	USB Charger Port	With (12v-24v)
	Steering Type	Electric Power Steering
	Brake System	Hydraulic, Front-rear Split Circuit with ABS
	Aircond System	Denso
	Suspension - Front	MachPherson Strut with Coil Spring
	Suspension - Front	5-Link Coil Spring
	Fuel Tank Capacity	43 Litres
	Tyre Size	165R14C


Power Window System		Multimedia Audio Display Unit


Reverse Camera		USB Charging Port

Power Window System

Multimedia Audio Display Unit

Reverse Camera

USB Charging Port

DAIHATSU GRAN MAX PANEL VAN (MT)

MT02

DAIHATSU GRAN MAX PICK-UP (MT)

MT01
