Smart Edition Auto offers a diverse portfolio of commercial vehicles including new, used, and rebuilt lorries and among our featured models are the Hino 300, 500, and 700 series, as well as options from Foton, Daihatsu, and JMC Each product listing includes specifications, features, and body style options to help you choose the right vehicle.

  2. Products
  3. Hino Trucks
  4. HINO 500 SERIES - FG8JS1A
HINO 500 SERIES - FG8JS1A
HINO 500 SERIES - FG8JS1A
HINO 500 SERIES - FG8JS1A
HINO 500 SERIES - FG8JS1A

HINO 500 SERIES - FG8JS1A

  • FG8JS1A-PGM

  • Bringing HINO’s chassis versatility, HINO 500 Series is the ideal medium duty truck for operators.

  • Share Via
  • Download Brochure

Bringing HINO’s chassis versatility, HINO 500 Series is the ideal medium duty truck for operators. The outstanding range of trucks continues to offer medium duty trucks buyers total flexibility and satisfaction. The 500 series offers customers legendary fuel and operating efficiency. This is the right medium duty truck of your choice.

Interior

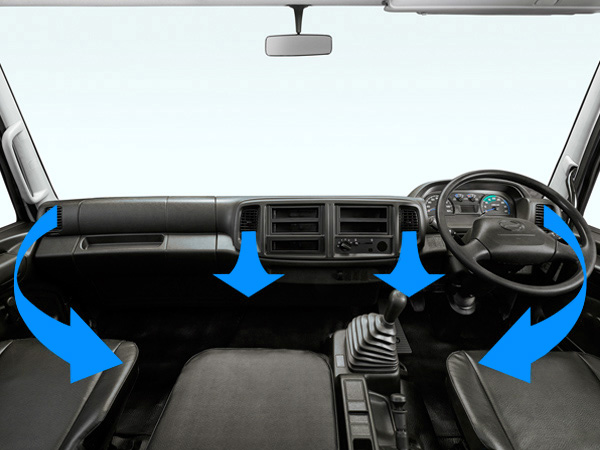

Airvents

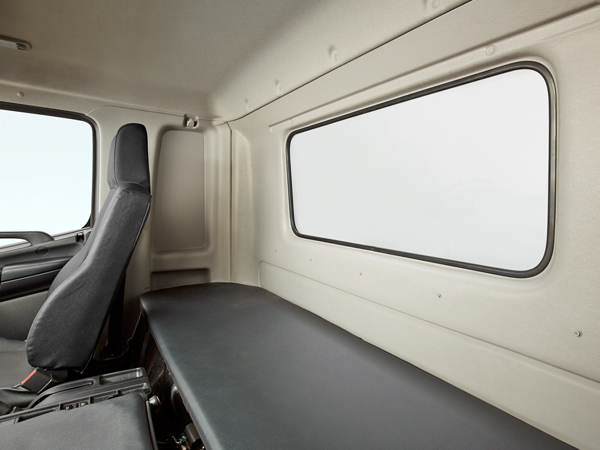

Bed Space

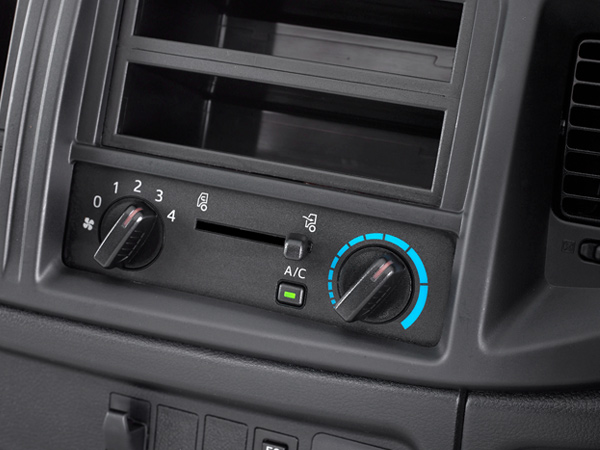

Cooler

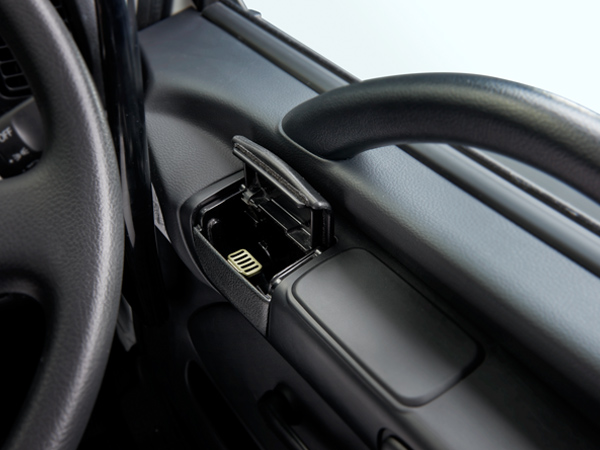

Ashtray

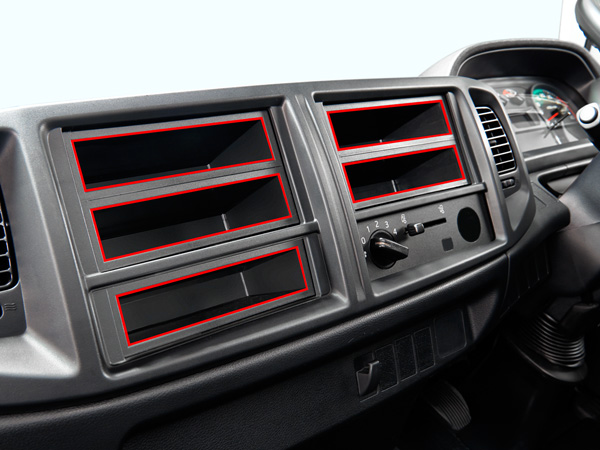

Center Clustor

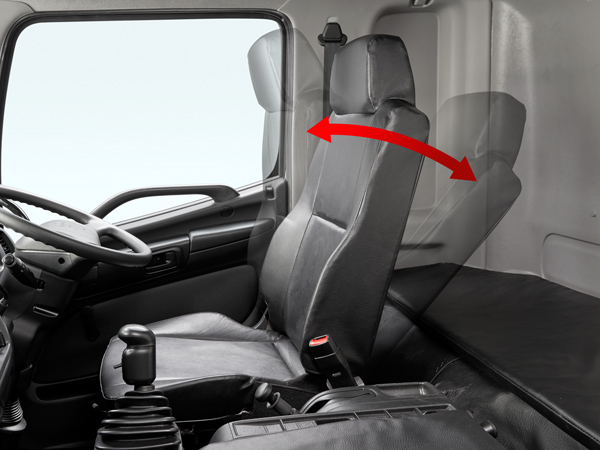

Driver Seat

Exterior

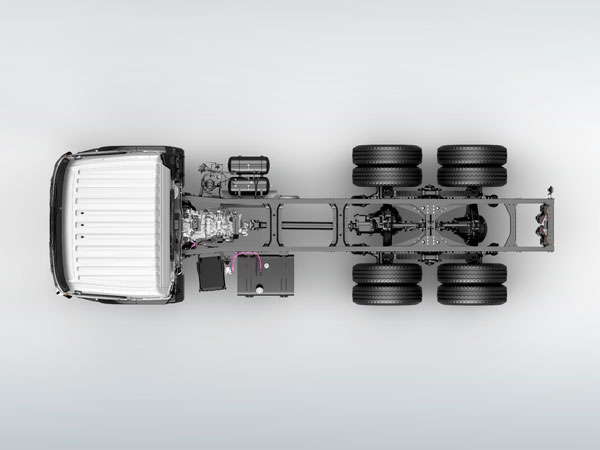

Platform

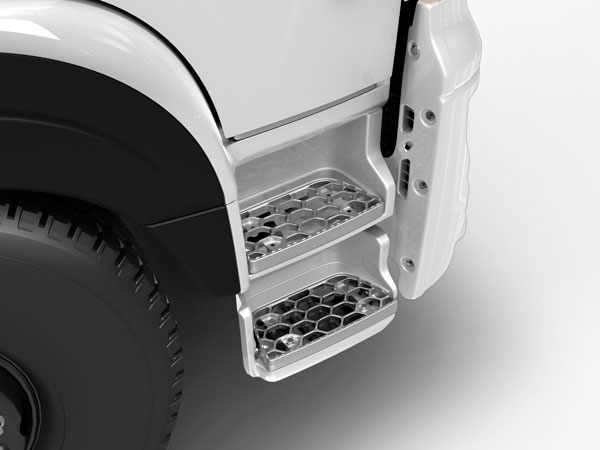

Cab Step

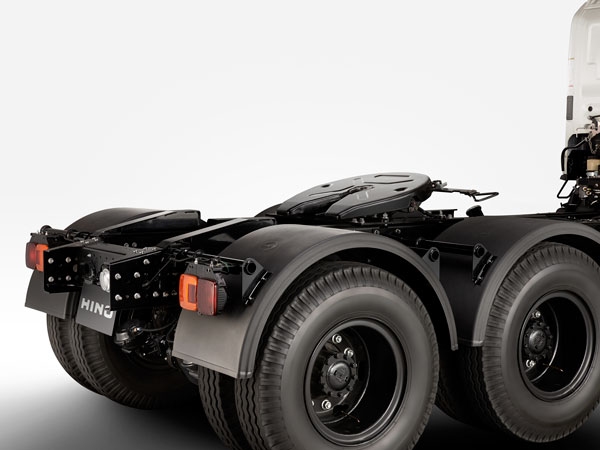

Coupler

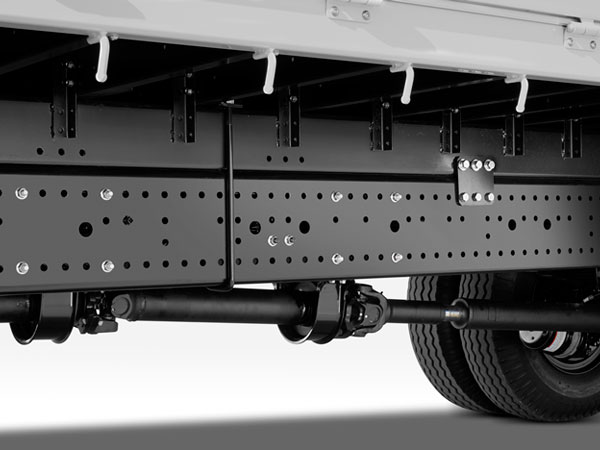

Bolt

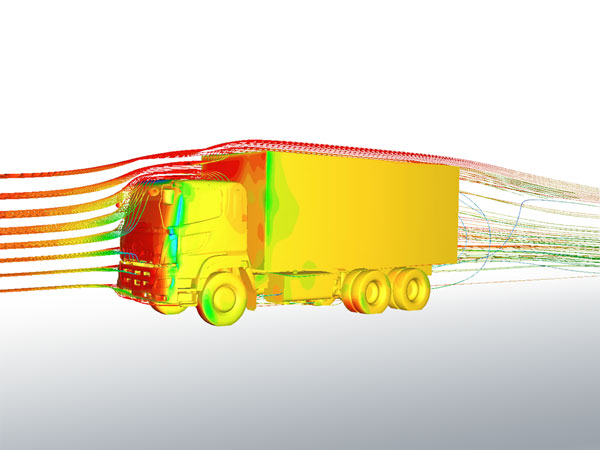

Aerodynamic

Safety & Perfomance

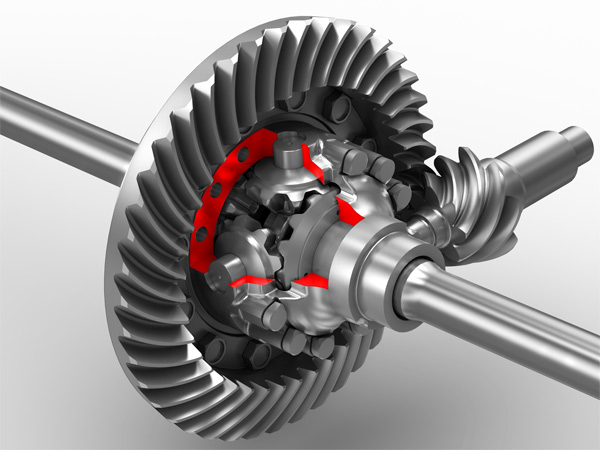

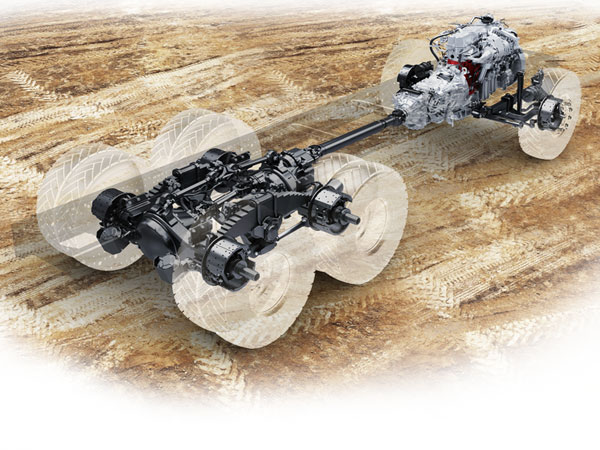

Gear

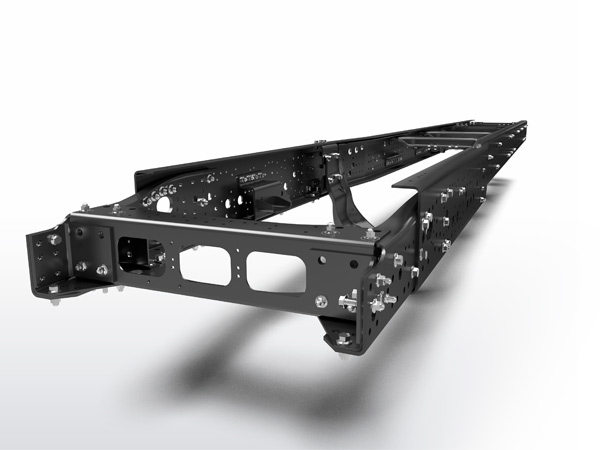

Flame

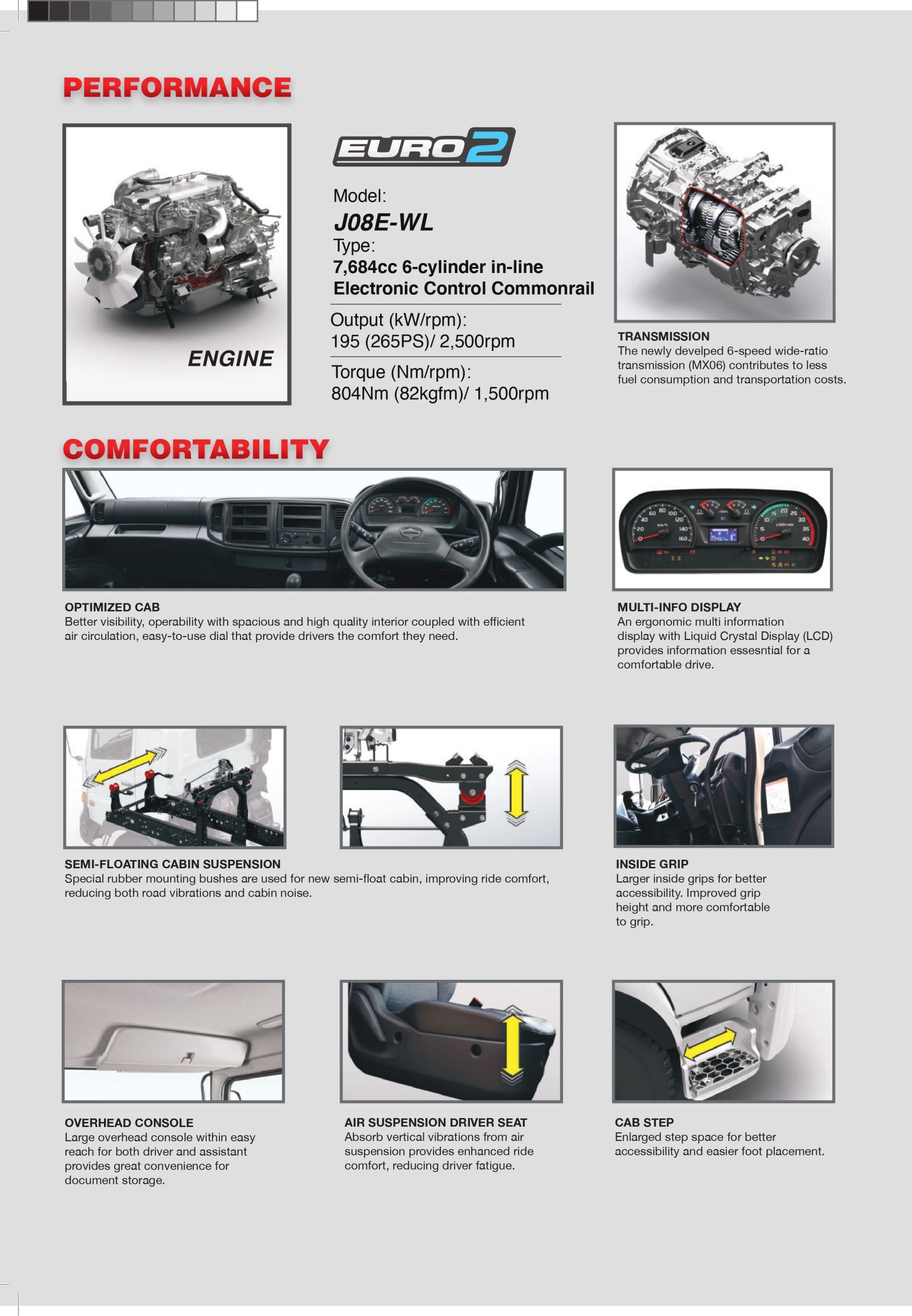

Engine Model HINO J08E-WL (EURO 2)
Type Diesel, 4cy., 6-Cylinder Vertical in-line, Overhead Camshaft, Water Cooled
Displacement (cc) 7,684
Max Output (Jis Gross) (kW(PS)/rpm) 195 (265) / 2,500
Max Torque (Jis Gross) (Nm(kgfm)/rpm) 804 (82) / 1,500
Bore & Stroke (mm) 112 x 130
Fuel Injection System Electronic Control, Commonrail Type
Air Intake System Turbo Charged Intercooled
Max Engine Speed (rpm) 2,750
Clutch Type Dry Single Plate With Damper Springs
Diameter (mm) 380
Transmission Model/No. Of Speed MX06/6-Speed/Manual
Type Six(6) Forward and One (1) Reverse Speed, Overdrive, Synchromesh 2nd - 6th
Ratio (1st - Top) 6.515/0.702
Axle Front Type Reversed Elliot, "I" Section Beam
Capacity (kg) 7,500
Rear Type Full-Floating, Single Reduction, Single Speed by Hypoid Gearings
Capacity (kg) 11,500
Brake Service Brake Type Drum Brake With Two Leading Shoes for Front and Rear Wheels with Auto Shoe Brake Adjuster
Service Brake Control Full Air, Dual Circuit, with Antilock Brake System (ABS)
Parking Brake Tyre Air operated spring brake on rear axle
Auxiliary Brake Type Exhaust Brake

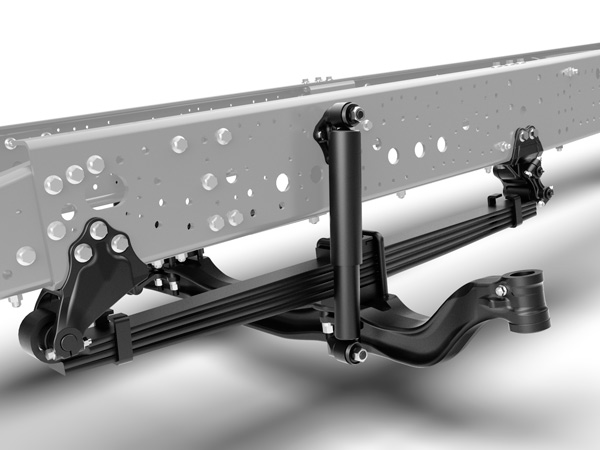

Suspension Front Type Semi-Elliptic Leaf Springs With Single Action Shock Absorbers
Rear Type Semi-Elliptic Main Leaf Springs and Auxiliary Springs
Frame Frame Width (mm) 840
Height x Width x Thickness (mm) 227 x 80 x 8.0
Cabin Tilting Mechanical Type
Steering Telescopic and Tilt Steering Column, Recirculating ball integral power steering
Hino Connect Equipped
Power Window Equipped
Central Locking Equipped
Seat Belt Equipped
Wheels & Tires Wheel Type Ten (10) - Stud Disc Wheel (ISO type)
Wheel Size 22.5 x 7.50
Tyre Type Tubeless Type
Tyre Size 11R22.5
Electrical Type 12 V x 2, Series Connection
Batteries 24V, 243kC (65Ah) at 20-hour rate
Alternator Capacity 24V, 60 Amp
Fuel Tank Capacity L 320

Performance
G.V.W Rating kg 16,000
Performance Max Speed (km/h) 90*(With Speed Limiter)
Gradeability (tan0) % 43.9
Transmission Ratio Model MX06
1st 6.515
2nd 4.224
3rd 2.441
4th 1.473
5th 1.000
6th 0.702
Reverse 6.991
Rear Axle Model SH16
Ratio 6.833

Dimension & Mass
Chassis Mass (Without standard tool set, with spare tyre) Front Axle (kg) 3,310 3,350
Rear Axle (kg) 2,330 2,385
Total (kg) 5,640 5,735
Dimension Wheelbase WB (mm) 5,530 6,130
Overall Length OL (mm) 9,495 10,445
Overall Width OW (mm) 2,490
Overall Height OH (mm) 2,780
Cab To Axle Center CA (mm) 4,700 5,300
Rear Overhang ROH (mm) 2,675 3,025
Front Tread FT (mm) 2,055
Rear Tread RT (mm) 1,835
Turning Radius (on tire) (mm) 9,300 10,300
Seating Capacity 3

You May Also Like...

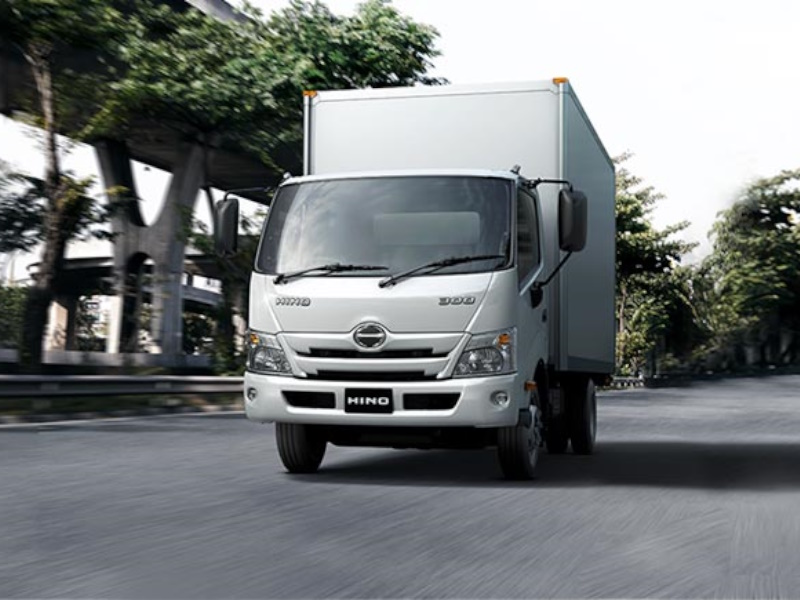

HINO 300 SERIES - XZU600R

2225 HINO 300 SERIES - XZU600R

XZU600R-WKMLS3

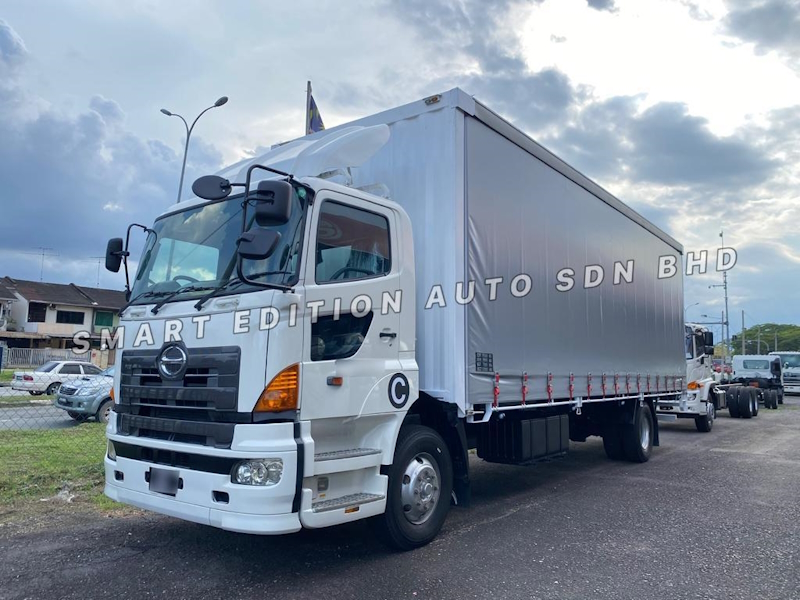

FL8JW1A-XGM 32ft Curtain Slider

2244 FL8JW1A-XGM 32ft Curtain Slider

FL8JW1A-XGM-01

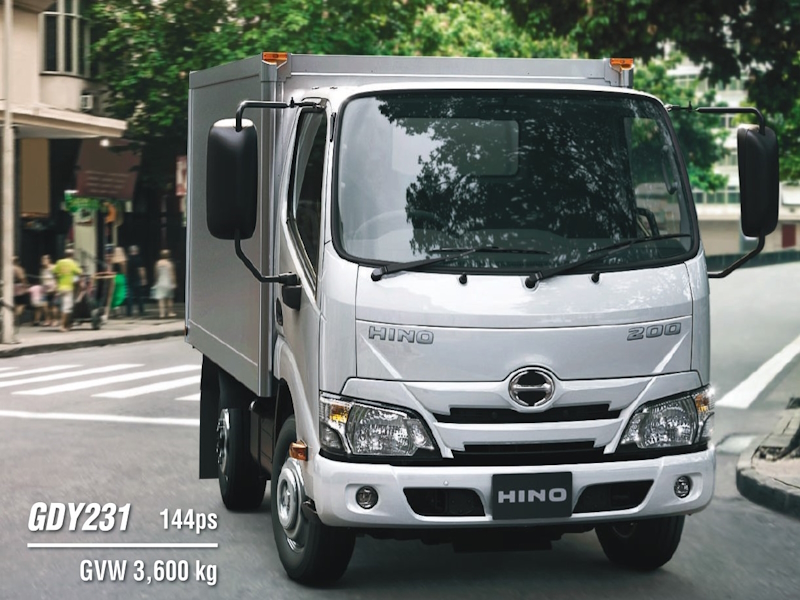

HINO 200 SERIES GDY231
