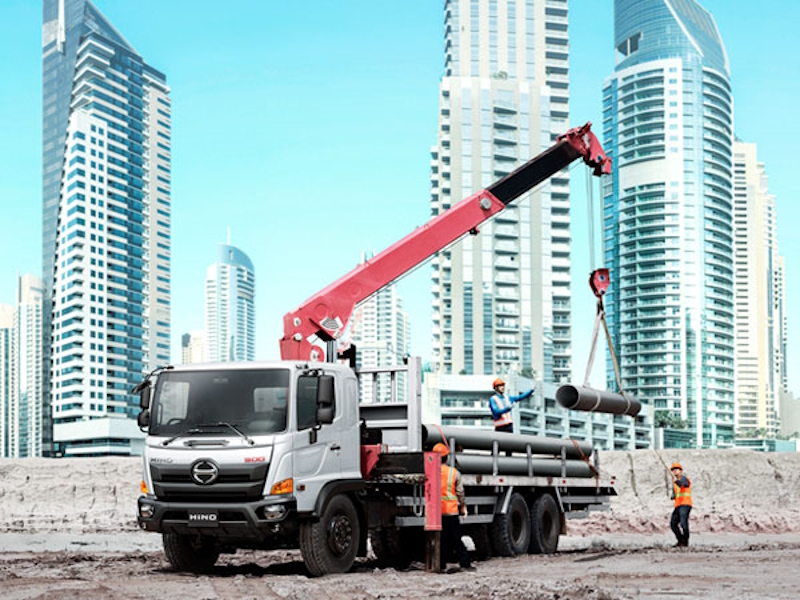

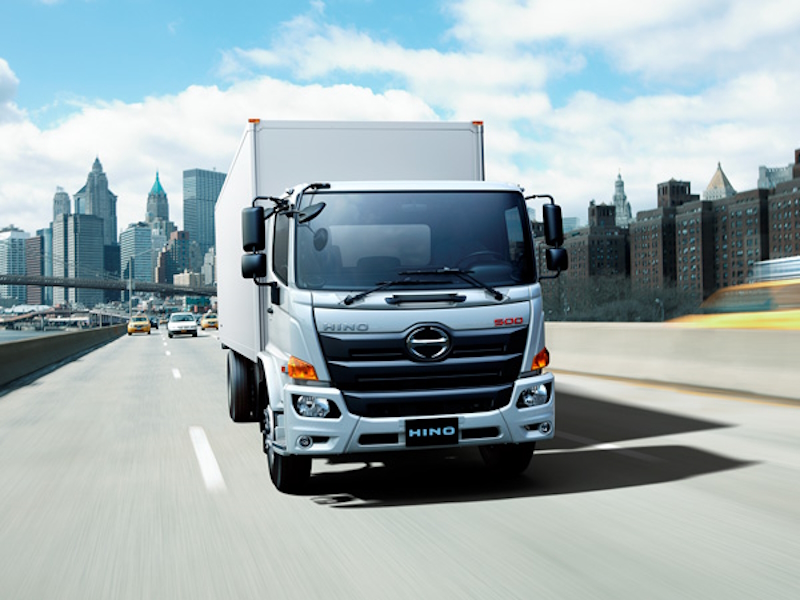

HINO 500 SERIES J08E-WL (EURO 2)
|
| |
Drive Your Business Easier
|
| Bringing HINO’s chassis versatility, HINO 500 Series is the ideal medium duty truck for operators. The outstanding range of trucks continues to offer medium duty trucks buyers total flexibility and satisfaction. The 500 series offers customers legendary fuel and operating efficiency. This is the right medium duty truck of your choice. |
|
|
| |
|
|
HINO 500 SERIES J08E-WL (EURO 2)
|
| |
Drive Your Business Easier
|
| Bringing HINO’s chassis versatility, HINO 500 Series is the ideal medium duty truck for operators. The outstanding range of trucks continues to offer medium duty trucks buyers total flexibility and satisfaction. The 500 series offers customers legendary fuel and operating efficiency. This is the right medium duty truck of your choice. |
| |
.jpg) |
| |
|
|
|
Interior
|
| |
.jpg "Airvents") |
|
.jpg "Bed space") |
|
.jpg "Cooler") |

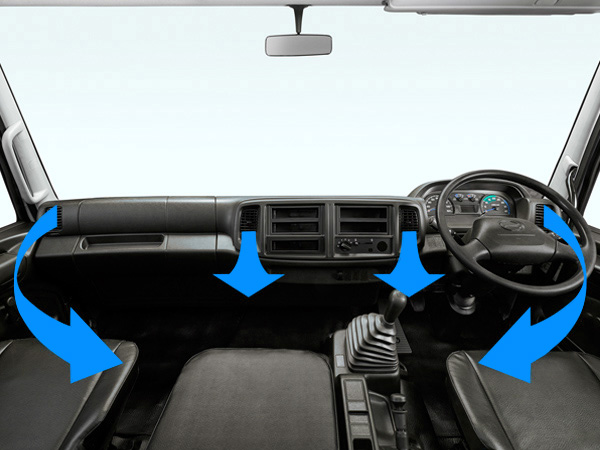

| Airvents |
|

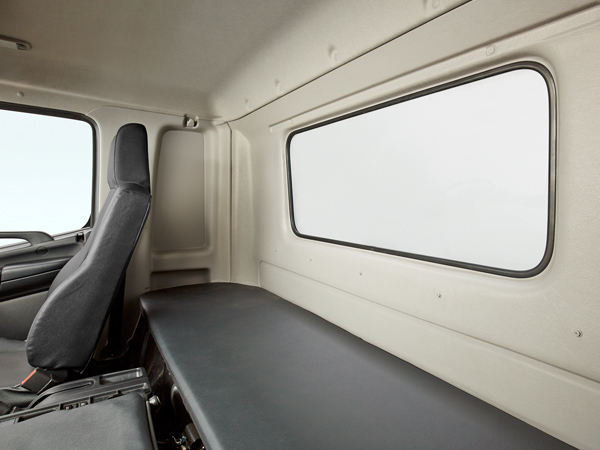

Bed Space |
|

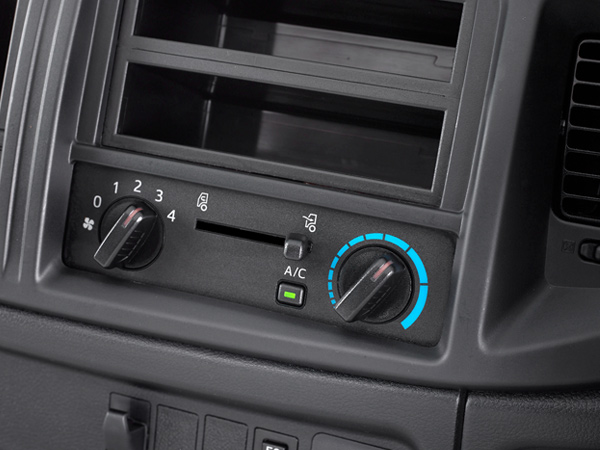

Cooler |
|
| |
.jpg "Ashtray") |
|
.jpg "Center clustor") |
|
.jpg "Driver Seat") |

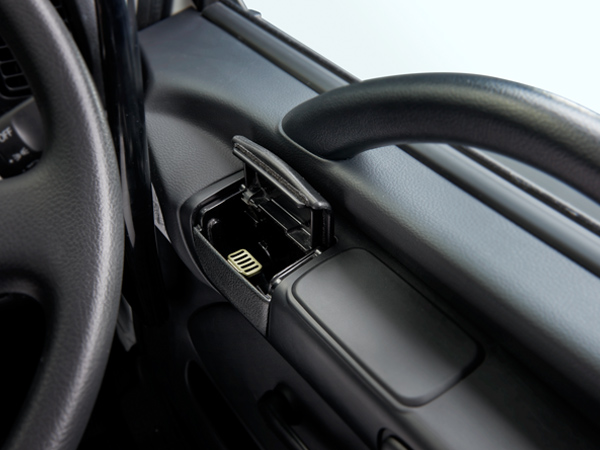

| Ashtray |
|

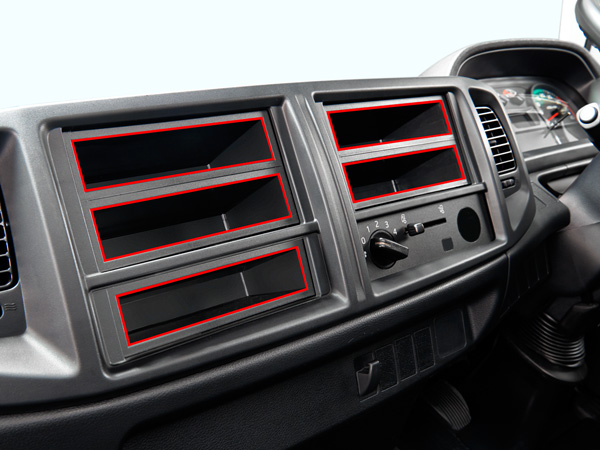

Center Clustor |
|

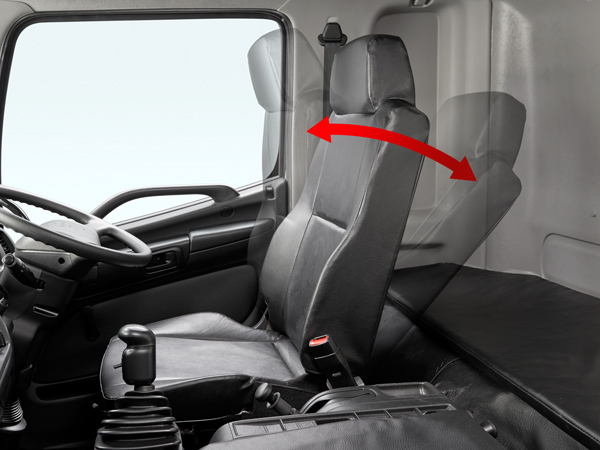

Driver Seat |
|
|
| |
| |
Exterior
|
| |
.jpg "Platform") |
|
.jpg "Cab Step") |
|
.jpg "Coupler") |

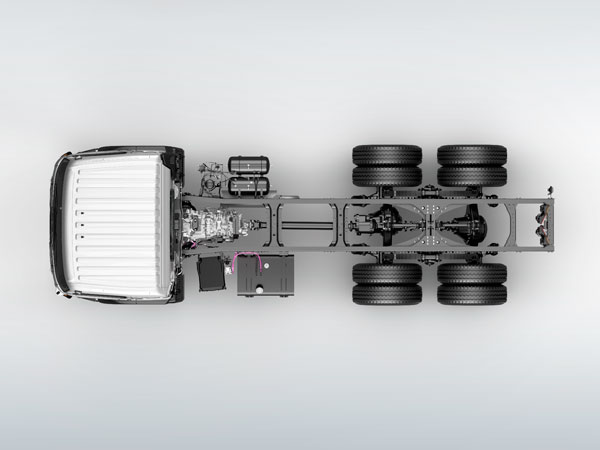

| Platform |
|

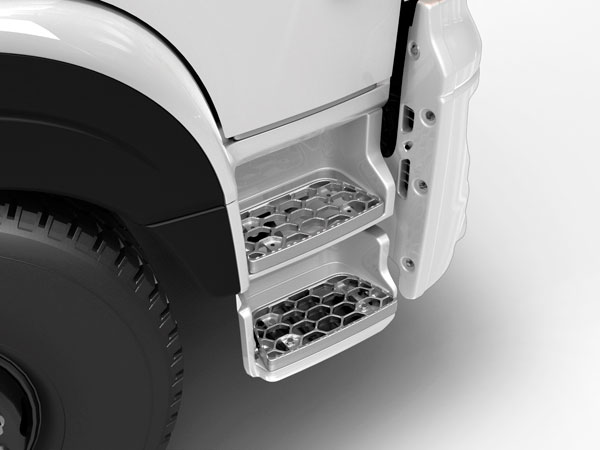

Cab Step |
|

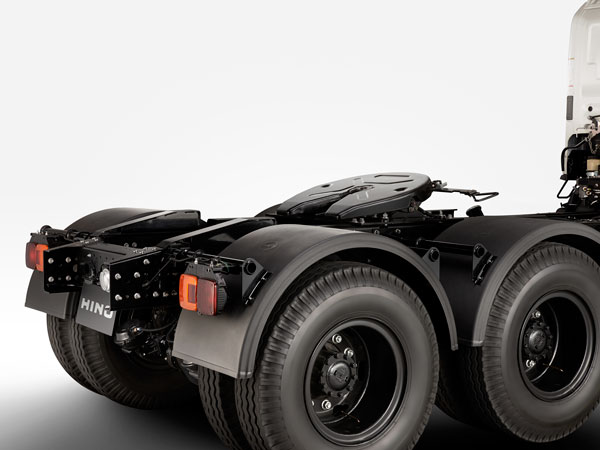

Coupler |
|
| |
|
|
|
| |
|
|
| |
|
|
|
Interior
|
| |
|
| Airvents |
| |
|
| Bed Space |
| |
|
| Cooler |
|
| |
|
| Ashtray |
| |
|
| Center Clustor |
| |
|
| Driver Seat |
|
|
| |
| |
Exterior
|
| |
|
| Platform |
| |
|
| Cab Step |
| |
|
| Coupler |
|
| |
|
|
|
| |
|
|
| |
|
|
|
|

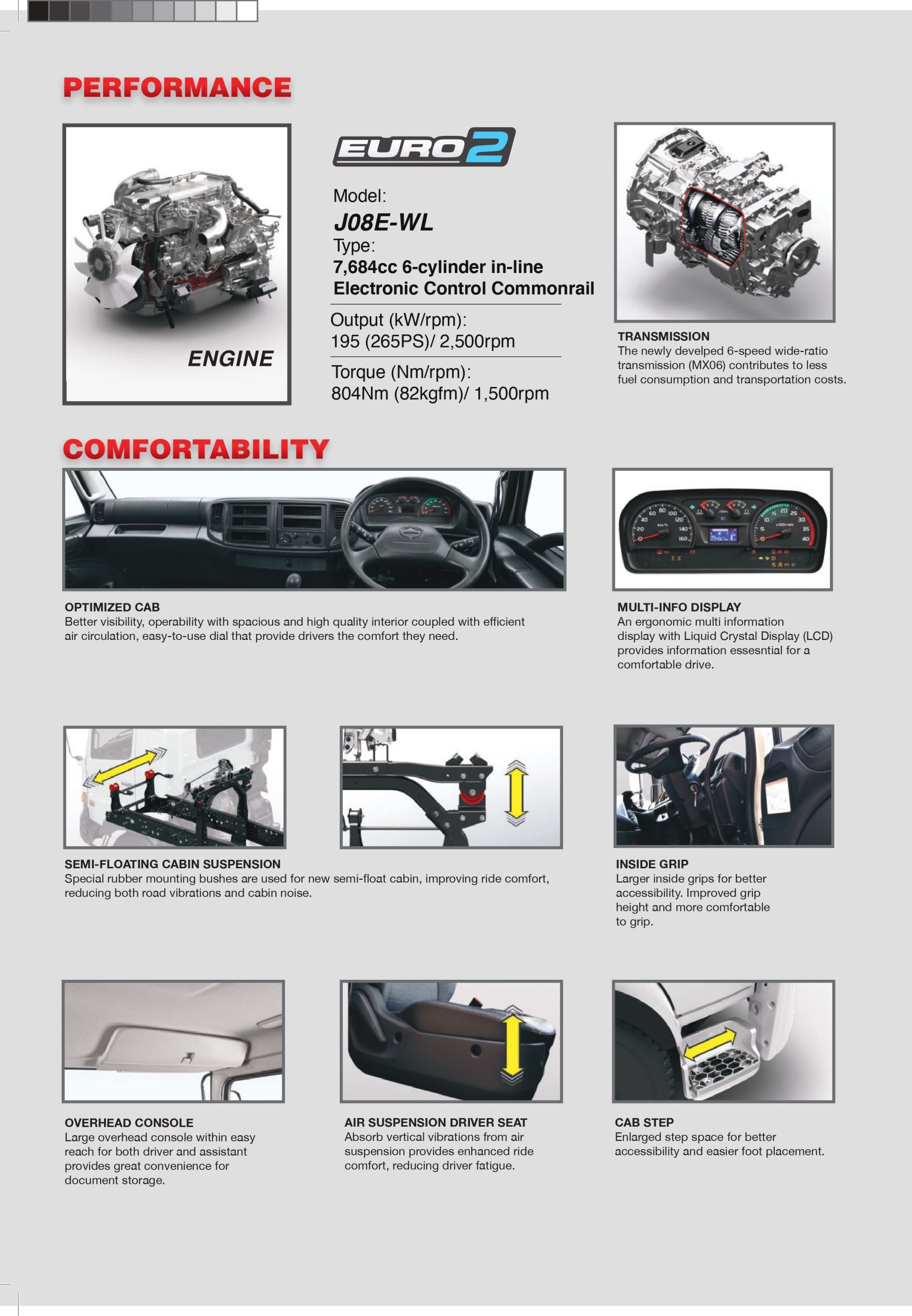

| Engine |
Model |
HINO J08E-WL (EURO 2) |
| Type |
Diesel, 4cy., 6-Cylinder Vertical in-line, Overhead Camshaft, Water Cooled |
| Displacement (cc) |
7,684 |
| Max Output (Jis Gross) (kW(PS)/rpm) |
195 (265) / 2,500 |
| Max Torque (Jis Gross) (Nm(kgfm)/rpm) |
804 (82) / 1,500 |
| Bore & Stroke (mm) |
112 x 130 |
| Fuel Injection System |
Electronic Control, Commonrail Type |
| Air Intake System |
Turbo Charged Intercooled |
| Max Engine Speed (rpm) |
2,750 |
| Clutch |
Type |
Dry Single Plate With Damper Springs |
| Diameter (mm) |
380 |
| Transmission |
Model/No. Of Speed |
MX06/6-Speed/Manual |
| Type |
Six(6) Forward and One (1) Reverse Speed, Overdrive, Synchromesh 2nd - 6th |
| Ratio (1st - Top) |
6.515/0.702 |
| Axle |
Front |
Type |
Reversed Elliot, "I" Section Beam |
| Capacity (kg) |
7,500 |
| Rear |
Type |
Full-Floating, Single Reduction, Single Speed by Hypoid Gearings |
| Capacity (kg) |
11,500 |
| Brake |
Service Brake Type |
Drum Brake With Two Leading Shoes for Front and Rear Wheels with Auto Shoe Brake Adjuster |
| Service Brake Control |
Full Air, Dual Circuit, with Antilock Brake System (ABS) |
| Parking Brake Type |
Air operated spring brake on rear axle |
| Auxiliary Brake Type |
Exhaust Brake |

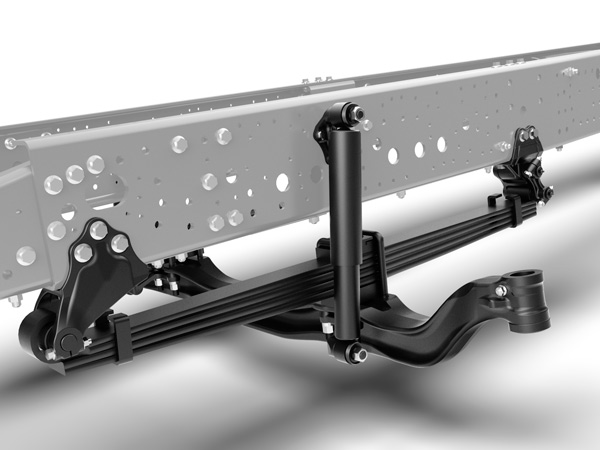

| Suspension |
Type |
Semi-Elliptic Leaf Springs With Single Action Shock Absorbers |
| Diameter |
Semi-Elliptic Main Leaf Springs and Auxiliary Springs |

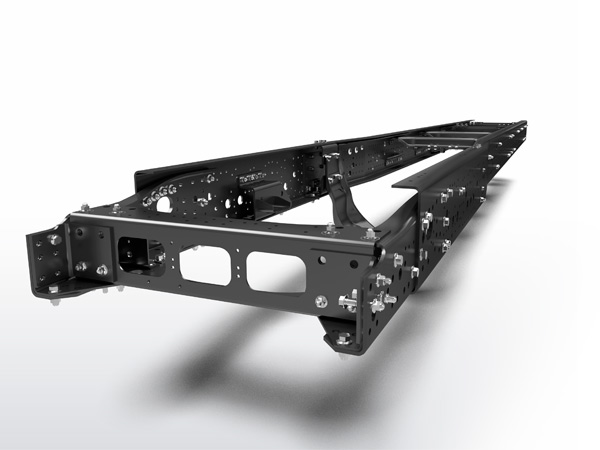

| Frame |
Frame Width (mm) |
840 |
| Height x Width x Thickness(mm) |
227 x 80 x 8.0 |
| Cabin |
Tilting |
Mechanical Type |
| Steering |
Telescopic and Tilt Steering Column, Recirculating ball integral power steering |
| Hino Connect |
Equipped |
| Power Window |
Equipped |
| Central Locking |
Equipped |
| Seat Belt |
Equipped |
| Wheels & Tires |
Wheel Type |
Ten (10) - Stud Disc Wheel (ISO type) |
| Wheel Size |
22.5 x 7.50 |
| Tyre Type |
Tubeless Type |
| Tyre Size |
11R22.5 |
| Electrical |
Type |
12V x 2, Series Connection |
| Batteries |
24V, 243kC (65Ah) at 20-hour rate |
| Alternator Capacity |
24V, 60 Amp |
| Fuel Tank Capacity |
L |
320 |
|
| |
| Performance |
| G.V.W Rating |
kg |
16,000 |
| Performance |
Max Speed (km/h) |
90*(With Speed Limiter) |
| Gradeability (tan0) % |
43.9 |
| Transmission Ratio |
Model |
MX06 |
| 1st |
6.515 |
| 2nd |
4.224 |
| 3rd |
2.441 |
| 4th |
1.473 |
| 5th |
1.000 |
| 6th |
0.702 |
| Reverse |
6.991 |
| Rear Axle |
Model |
SH16 |
| Ratio |
6.833 |
|
| |
| Dimension & Mass |
| Chassis Mass (Without standard tool set, with spare tyre) |
Front Axle (kg) |
3,310 |
3,350 |
| Rear Axle (kg) |
2,330 |
2,385 |
| Total(kg) |
5,640 |
5,735 |
| Dimension |
Wheelbase WB (mm) |
5,530 |
6,130 |
| Overall Length OL(mm) |
9,495 |
10,445 |
| Overall Width OW (mm) |
2,490 |
| Overall Height OH (mm) |
2,780 |
| Cab To Axle Center CA (mm) |
4,700 |
5,300 |
| Rear Overhang ROH (mm) |
2,675 |
3,025 |
| Front Thread FT (mm) |
2,055 |
| Rear Tread RT (mm) |
1,835 |
| Turning Radius (on tire) (mm) |
9,300 |
10,300 |
| Seating Capacity |
3 |
|
|
|
|
