| Engine |
Model |

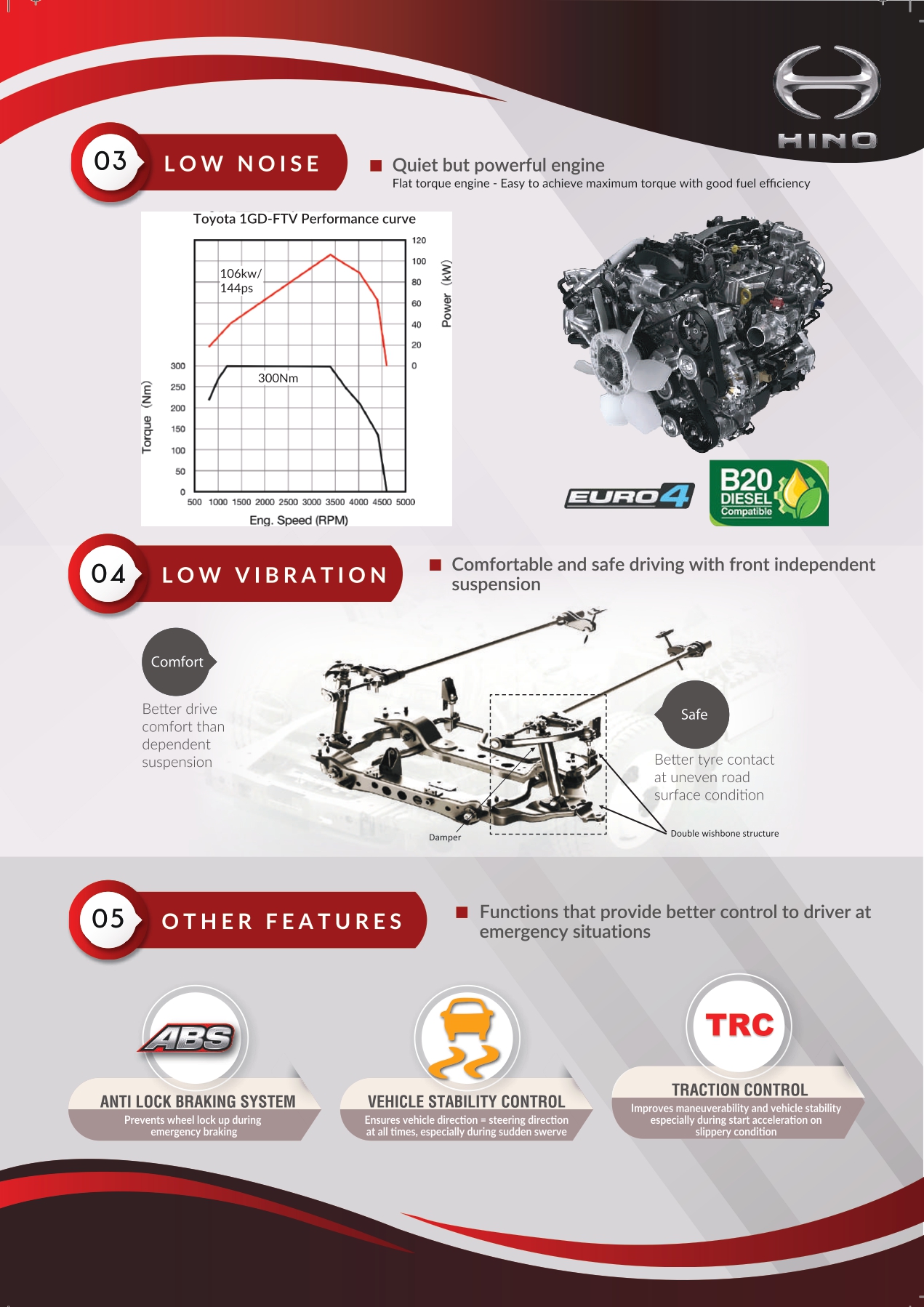

TOYOTA 1GD-FTV |
| Type |
Diesel, Turbocharged and intercooled, in-line 4-cylinder, double overhead camshaft, water-cooled |
| Displacement (cc) |
2,754 |
| Max Output (PS/rpm) |
144 / 3,400 |
| Max Torque (Nm/rpm) |
300 / 1,200-3,200 |
| Bore & Stroke (mm) |
92 x 103.6 |
| Fuel Injection System |
Electronic Control Commonrail |
| Air Intake System |
Under cab mounted air intake with air filler |
| Max. Engine Speed (rpm) |
4,400 |
| Clutch |
Type |
Dry single plat with damper springs, hydraulic control |
| Diameter (mm) |
275 |
| Axle |
Front |
Type |
Independent |
| Capacity (kg) |
1,800 |
| Rear |
Type |
Full-Floating, single reduction, single speed by hypoid gearings |
| Capacity (kg) |
2,300 |
| Brake |
Service Brake Type |
Hydraulic System with Ventilated Disc for Front Wheels and Dual Two (2) Leading Shoes for Rear Wheels |
| Service Brake Control |
Vacuum Servo Hydraulic, Dual Circuits with ABS and VSC |
| Parking Brake Type |
Mechanical, internal expanding acting on transmission output shaft |
| Suspension |
Front (Type) |
Double wishbone, independent torsion bar springs with double acting shock absorbers and stabiliser bar |
| Rear (Type) |
Semi-elliptic main and auxiliary leaf springs and rubber rebound bumpers with double acting shock absorbers |
| Frame |
Width |
800 |
| Dimention (HxWxT) |
160 x 50 x 4.5 |
| Cabin Equipment |
Tilting |
Mechanical Type |
| Steering |
Telescopic and tilt steering column,rack and pining power steering |
| Power Window |
Equipped |
| Central Locking |
Equipped |
| Seat Belt |
Equipped |
| Wheels & Tires |
Wheel Type |
6 Stud disc wheel |
| Rim Size |
15 x 5J |
| Tire Size |
195 / 75R15 |
| Electrical |
Type |
12V , negative ground |
| Batteries |
12V , 80 Ah |
| Alternator Capacity (V-A) |
12V -100A |
| Fuel Tank Capacity |
Liter |
80 |
|
| Chassis Mass (Without standard tool set, & spare tire) |
Front (kg) |
1,175 |
| Rear (kg) |
520 |
| Total (kg) |
1,695 |
| Dimension |
Wheelbase (mm) |
2,545 |
| Overall Length (mm) |
4,565 |
| Overall Height (mm) |
1,990 |
| Overall Width (mm) |
1,695 |
| Cab To Rear Axle (mm) |
1,990 |
| Front Overhang ROH (mm) |
960 |
| Rear Overhang (mm) |
1,015 |
| Fr Frame Height (mm) |
635 |
| Rr Frame Height (mm) |
710 |
| Front Tread (mm) |
1,440 |
| Rear Tread(mm) |
1,400 |

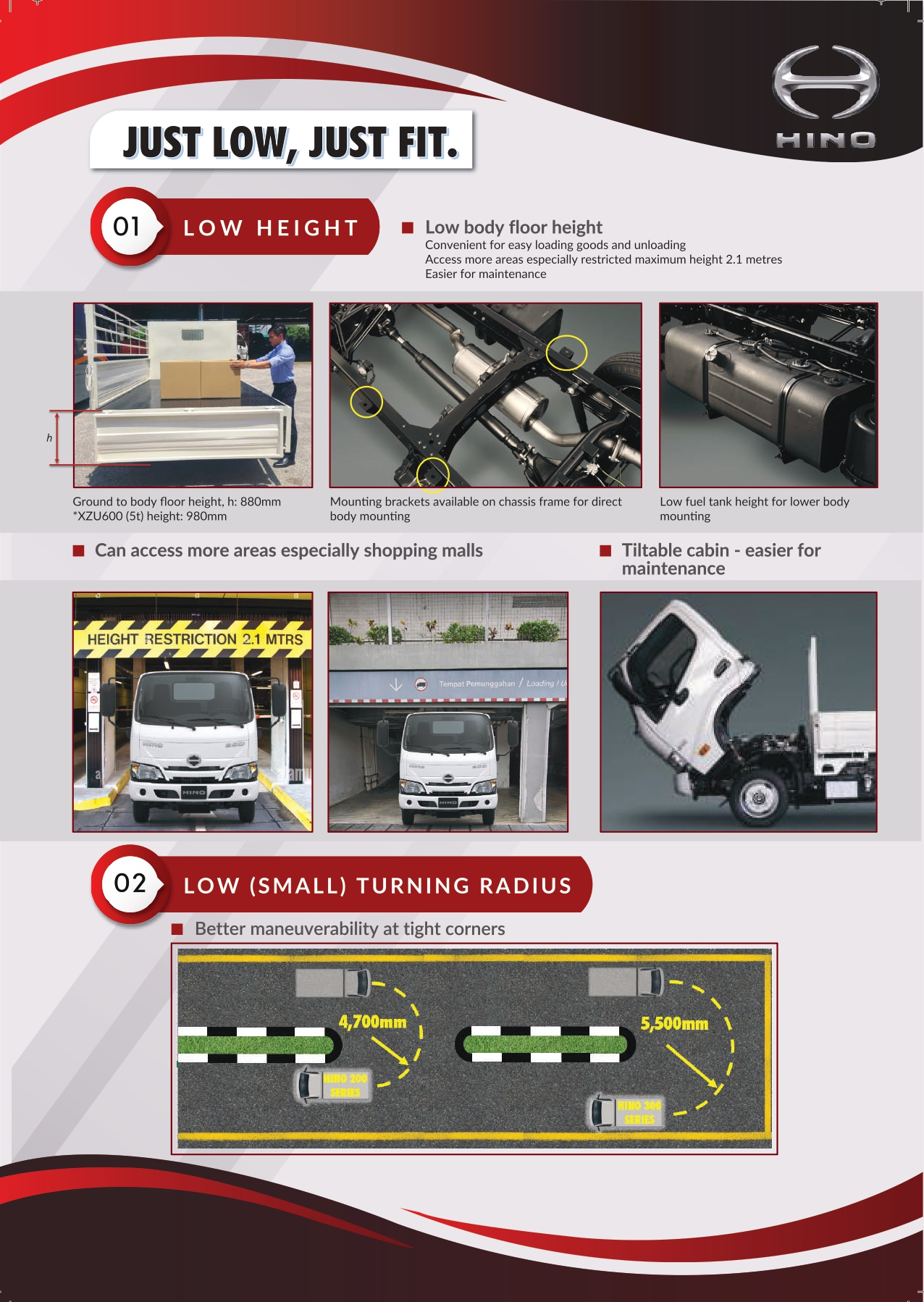

| Turning Radius (mm) |
4,700 |
|
