THE TRUCK FOR EVERY JOB.
|
|
With the Cummins-powered Aumark S, Foton have re-defined what a light-duty truck should be. Starting with a clean sheet of paper, Foton set out to raise the benchmark for light-duty trucks. No other light-duty truck can provide Cummins’ power, serviceability, reliability and durability. No other light-duty truck can provide the safety and security of a full air brake system (including an air parking brake) and a 24 Volt electrical system, features that are usually the domain of much more expensive heavy-duty trucks.
The Aumark S was tested to the max: durability testing, reliability testing, handling and stability testing on ice and snow, cold weather testing (-27.5°C), high altitude testing (4700m) along with hot weather testing (47°C). The Cummins powered Foton Aumark S, re-defines what a light-duty truck should be. |
| |
|
|
| |
 |
|
 |
|
 |
GVM/GCM
4.5GVM or 6GVM |
|
TORQUE
400Nm |
|
POWER
110kW |
| |
|
|
|
|
 |
|
 |
|
|
TRANSMISSION
ZF | 5S408 (MT)
|
|
WARRANTY
3 years/160,000kms
(Truck bodies 1yr/20,000kms) |
|
|
|
| |
|
|
| |
.jpg) |

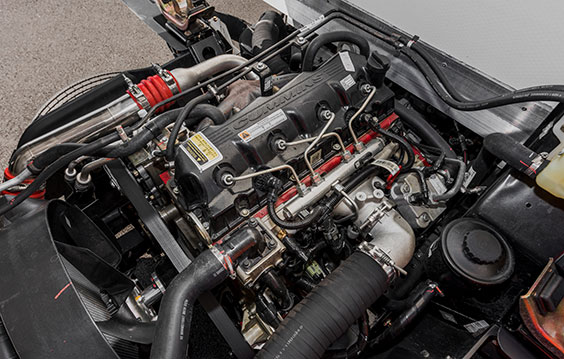

POWERTRAIN
At the heart of the Aumark S is one name that needs no introduction: Cummins. The Aumark S is powered by the latest generation Cummins ISF 3.8l engine, which provides 115kW of power and 500Nm of torque. Turbocharged and intercooled with a Bosch fuel injection system, the Cummins ISF engine provides the Aumark S with a premium powertrain that’s not found on any other light-duty trucks. |
| |
 |
INTERIOR DESIGN
Once inside the Aumark S’s cab you will appreciate and understand why we call it a ‘Super Cab’. The Super Cab is one of the widest in its class, providing a spacious ergonomic environment that places the driver at the command centre. Controls are positioned in a logical, easy and clean lay-out, designed to enhance ‘the man-machine’ interface, resulting in greater driving pleasure and control. A 2-way adjustable steering column and height adjustable driver’s seat belt provide the driver with a range of comfort options. |
| |
 |
EXTERIOR DESIGN
One look at that Aumark S, and you know this truck is anything but ordinary. The Aumark S stands out from all other light-duty trucks with its extraordinarily spacious and streamlined ‘Super Cab’. Large glass areas provide excellent, all-round visibility for an optimal driving experience. |
| |
 |
AIR BRAKES
Air brakes with discs all-round, together with ABS (Anti-lock Brake System) and EBD (Electronic Brake Force Distribution), provide high braking performance even under extreme environmental operating conditions.
The Aumark S is the only light-duty truck with this full air braking system, which includes the park brake system. Complementing the air brake system, is an exhaust brake system that provides increased vehicle control and brake savings, by transforming Cummins horsepower into braking power. |
| |
 |
ENHANCED VISIBILITY
With five exterior mirrors (close-proximity, front lower view, wide-angle mirrors), the Aumark S satisfies ECE R46 04 regulations and ensures the driver has maximum visibility.
The main mirrors are electronically controlled allowing you to select the optimum position. Heated mirrors ensure visibility in winter conditions. Generous glass areas (including rear-view window) provide class leading visibility for the driver. |
| |
 |
24V POWER SYSTEM
Aumark S sets the standard for light-duty trucks with a 24 Volt electrical system that provides increased reliability due to fewer problems with voltage drops. |
| |
TECHNOLOGY & PERFORMANCE
|
.jpg) |
|
.jpg) |
| |
|
|

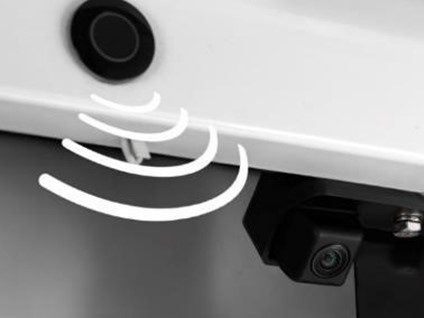

REVERSE CAMERA
In addition to the five exterior mirrors, the Aumark S comes with a reverse camera as standard, offering another viewpoint for the driver when reversing. This system is complemented with a reverse sensor and reversing buzzer. |
|

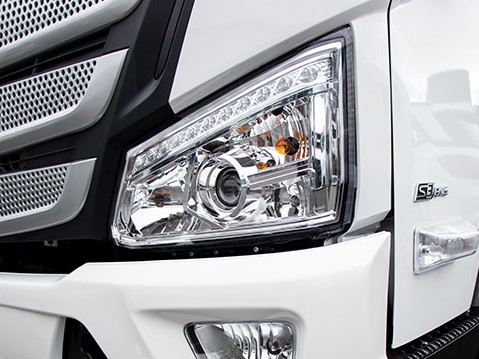

LED DAYTIME RUNNING LIGHTS
LED Daytime Running Lights allow you to be more visible to other road users. The headlight height is also adjustable from the cab. |
| |
|
|
.jpg) |
|
 |
| |
|
|

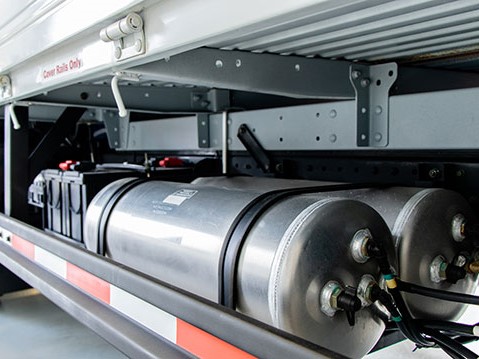

ALLOY FUEL & AIR TANKS
Lighter and corrosion resistant, aluminium is one of the primary materials used for weight reduction. Many truck manufacturers overlook the opportunity to reduce weight in the fuel tanks due to the higher price tag. At Foton all our trucks come with alloy fuels tanks as standard specification. |
|
TURNING CIRCLE
With a ‘kerb to kerb’ turning circle of only 12.2 metres, the Aumark S provides drivers with class leading maneuverability. |
|
|
| ENGINE |
| Make and Model |
Cummins ISF2.8s3129T |
| Type |
Diesel, Turbocharged, Intercooled, Four-Stroke |
| Number of Cylinders |
4 Cylinders In-Line |
| Displacement (L) |
2.78 |
| Rated Max. Output |
129 PS (96kW) @ 3,200 rpm |
| Rated Max. Torque |
310 N-m (31.6 kg-m) @ 1,600 -2,700 rpm |
| Emission Level |
Euro 3 |
| Fuel Injection System |
ECU Controlled High Pressure Common Rail, Bosch |
|
| TRANSMISSION |
| Model |
ZF5S368 |
| Type |
5 - Speed Manual |
|
| WEIGHT |
| Gross Vehicle Weight (kg) |
5600 |
| Curb Weight |
2200 |
| Fuel Tank Capacity |
80, Aluminium |
OTHERS
| Tyres |
215 / 75R17.5 |
| Wheels |
LW17.5 - 6.00, 5 - Studs |
| Brakes |
Hydraulic with Anti-lock Braking System(ABS), Electronic Brake Distribution(EBD) & Brake Assist(BA) |
| Steering system |
Hydraulic Power Assisted |
| Battery |
12v, 120AH |
|
